Why Thermoplastic Road Marking Machines Improve Highway Construction Efficiency
In the summer of 2023, a contractor in Texas spent 11 nights re-striping a 14-mile section of I-35. The cold paint applied in February had faded to near-invisibility within five months. Traffic control alone consumed 40% of the project budget. The crew was back on the same stretch before the season ended. This is not an isolated case — it is the predictable outcome of choosing the wrong marking material and equipment for the job.
Across North America, Europe, and Southeast Asia, highway authorities are tightening specifications. AASHTO, EN 1436, and ASTM standards have all raised retroreflectivity requirements over the past decade. Cold solvent-based paints increasingly fail to meet these thresholds past 12 months. Thermoplastic markings, applied with properly engineered hot melt equipment, are becoming the default for highways with AADT above 15,000. The machine matters as much as the material.
The Real Problem: Why Highway Markings Fail Prematurely
When a highway marking fails, the visible symptom is simple: the line disappears. The root cause is usually a chain of failures that starts long before the first stripe hits the pavement.
1. Material Selection Mismatch
Cold paint costs roughly $0.08 to $0.15 per linear foot for a 4-inch line. But on a highway with 30,000 vehicles per day, cold paint loses 60% of its retroreflectivity within 4 to 8 months. The Texas A&M Transportation Institute documented this in a 2019 study across seven test sites: solvent-based paints averaged 90-110 mcd/m²/lx at application, dropping below the FHWA minimum of 100 mcd/m²/lx within 180 days on high-traffic sections.
Thermoplastic, by contrast, starts at 220-350 mcd/m²/lx and maintains above 150 mcd/m²/lx for 2 to 3 years on the same roads. Material cost per linear foot is higher — $0.25 to $0.45 — but factoring in traffic control, lane closures, and labor for re-application, the annualized cost flips decisively in favor of thermoplastic.
2. Application Temperature Inconsistency
This is where the machine becomes the critical variable. Thermoplastic must be heated to 200-220°C (392-428°F) and maintained within a narrow window. Drop below 190°C and material viscosity increases, producing uneven film thickness. Exceed 230°C and the binder degrades — yellowing, embrittlement, and premature glass bead loss follow within months.
Entry-level hot melt kettles with single-zone heating and manual temperature control produce swings of ±15°C. A well-engineered thermoplastic road marking machine with dual-zone or triple-zone heating and PID-controlled burners holds ±3°C. That 12°C difference translates directly to marking longevity. The same thermoplastic material, applied at 195°C versus 218°C, shows a 30% difference in glass bead retention after 12 months of traffic.
3. Glass Bead Embedment Depth
Retroreflectivity comes from glass beads, not the marking material. Beads must embed to 50-60% of their diameter — deep enough to anchor, shallow enough to reflect. Too shallow and tires rip them out within weeks. Too deep and the bead is buried, producing zero reflectivity from day one.
A quality thermoplastic machine controls bead application independently of material flow. The bead dispenser should gravity-feed or pressure-feed beads immediately behind the extrusion shoe, before the material skins over. With synchronized bead dispensing tied to ground speed, embedment consistency improves dramatically. Machines relying on manual bead broadcasting — still common on low-cost imported units — produce embedment variation of 20-40%, meaning a significant portion of beads are either wasted or ineffective.
Thermoplastic vs. Cold Paint vs. Two-Component: A Data-Driven Comparison
Parameter
Cold Solvent Paint
Two-Component (2K)
Thermoplastic (Hot Melt)
Material cost per linear foot (4" line)
$0.08 – $0.15
$0.18 – $0.35
$0.25 – $0.45
Initial retroreflectivity (mcd/m²/lx)
90 – 150
200 – 350
220 – 380
Retroreflectivity after 18 months (high-traffic)
30 – 60
100 – 160
140 – 220
Typical service life (AADT >20,000)
4 – 8 months
18 – 30 months
24 – 48 months
Dry time (to no-track @ 25°C)
5 – 15 minutes
15 – 45 minutes
2 – 10 minutes
Application temperature
Ambient
Ambient (chemical cure)
200 – 220°C
Lane closure time (per km, single line)
20 – 30 minutes
30 – 60 minutes
10 – 20 minutes
Glass bead retention (% after 12 months)
40 – 55%
60 – 75%
70 – 85%
Annualized cost (material + labor + TMP)
$0.42 – $0.78/ft
$0.22 – $0.41/ft
$0.15 – $0.28/ft
Key insight: Cold paint has the lowest upfront material cost but the highest annualized cost. Thermoplastic is 40-65% cheaper per year when accounting for re-application frequency, traffic control, and labor. The machine quality amplifies or erodes this advantage — a poorly controlled kettle can erase the lifecycle savings entirely.
What Makes a Thermoplastic Road Marking Machine Efficient: 5 Technical Criteria
1. Heating System Design: Single-Zone vs. Multi-Zone
A single-zone kettle heats the entire tank from one burner. Material at the bottom can reach 220°C while material near the top sits at 185°C. When the operator draws from the bottom, application temperature spikes; as the tank runs low, remaining material overheats and degrades.
Multi-zone heating — with separate burners for the main tank and the extrusion shoe — eliminates this stratification. The main tank maintains bulk temperature (190-200°C), while the application zone boosts to the final target (205-215°C) just before extrusion. This is the difference between a uniform 2.0mm line and one varying from 1.2mm to 2.8mm across a single tank load.
2. Agitation System: Continuous vs. Intermittent
Thermoplastic compound contains fillers, binder resins, and glass beads. Without continuous agitation, these components stratify by density. The result: segments of line that are resin-rich (brittle) followed by segments that are filler-rich (weak adhesion).
Look for machines with a hydraulic-driven or electric-driven continuous agitation system at 40-80 RPM. Intermittent agitation — common where the agitator shares a drive with ground speed — produces composition variation of ±15% across a shift. Continuous agitation keeps it under ±3%.
3. Extrusion Die Design and Width Flexibility
The extrusion shoe determines line profile. A fixed-width shoe limits you to one line width. Interchangeable shoe systems — supporting 100mm, 150mm, 200mm, 300mm, and 400mm widths — give the contractor flexibility without multiple machines. The shoe must be heated (not just the tank) to prevent material skinning at the die lip, which causes drag lines and inconsistent edges.

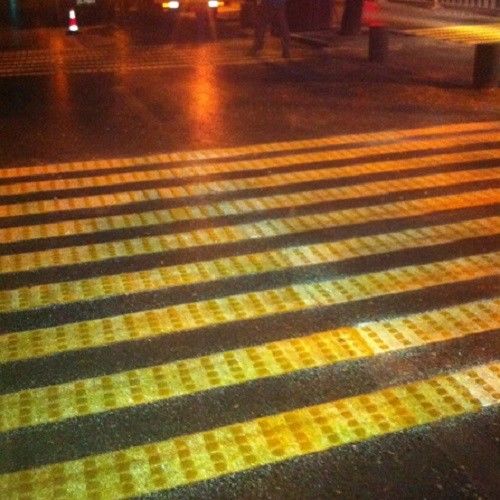

For highway work, look for a die that produces a raised profile (convex) marking of 1.5-3.0mm thickness. Raised-profile markings provide audible and vibratory feedback to drifting drivers — a requirement increasingly specified for edge lines and centerlines under EN 1436 and AASHTO guidelines.
4. Glass Bead Application: Pressure vs. Gravity vs. Manual
Manual bead broadcasting — an operator shaking beads from a handheld container — is the cheapest method and least consistent. Bead distribution varies by ±35% across 100 meters of line.
Gravity-fed dispensers improve consistency to ±15%. Pressure-fed systems, using compressed air to project beads into the still-molten thermoplastic surface, achieve ±8% uniformity. For highways where retroreflectivity is contractually specified, pressure-fed bead application is the minimum standard for meeting warranty requirements beyond 24 months.
5. Ground Speed Control and Material Flow Synchronization
The relationship between ground speed and material pump output determines line thickness. On older mechanical-drive machines, the operator manually adjusts pump stroke — producing thickness variation of ±20%.
Modern hydraulic-drive or servo-driven machines use a ground-following encoder wheel that automatically synchronizes material flow to travel speed. Whether operating at 3 km/h or 8 km/h, the machine maintains programmed thickness. For highway contracts with minimum dry-film thickness specifications (typically 1.5mm under AASHTO M249), this synchronization eliminates non-compliant thin sections.
Real-World Construction Data: Efficiency Gains from Machine Selection
A 2022 project on the M25 motorway in the UK compared two thermoplastic application methods on adjacent 5 km sections:
Metric
Low-Cost Kettle (Single Zone, Manual Bead)
Professional Machine (Multi-Zone, Pressure Bead)
Application speed (linear m/hour, 150mm line)
1,200 – 1,800
2,800 – 4,500
Material waste (% overspray/excess)
12 – 18%
3 – 6%
Glass bead usage (g/m², target 350)
280 – 520 (high variance)
330 – 370
Line thickness variance
1.1 – 2.9 mm
1.7 – 2.1 mm
Lane closure hours (per 5 km, 2 lines)
14.8 hours
7.2 hours
Re-work required (non-compliant sections)
8.2% of total length
0.4% of total length
Total project cost (incl. TMP and re-work)
£18,400
£11,700
The professional machine completed the same scope in roughly half the time, with 95% less re-work, and came in 36% cheaper on total project cost. The lane closure savings alone (7.6 fewer hours of traffic management per 5 km) justified the equipment investment within two projects.
Common Mistakes That Undermine Thermoplastic Performance
Mistake 1: Skipping Surface Preparation
Thermoplastic adheres mechanically, not chemically. It needs a clean, dry surface with adequate profile. Applying to damp pavement or one contaminated with diesel/oil reduces bond strength by 40-60%. Pavement temperature must be above 10°C; below this, the material cools too rapidly and beads fail to embed. Fifteen minutes spent on sweeping and drying pays back in years of additional service life.
Mistake 2: Using the Wrong Bead Size
Type I beads (AASHTO M247, 150-850 microns) are standard. But for highways with heavy truck traffic, Type III or Type IV beads (larger diameter, higher refractive index) improve wet-night visibility by 25-40%. Using Type I beads where Type III is specified is a common source of failed inspection — and has nothing to do with the machine, only the consumable selection.
Mistake 3: Overheating Material During Staging
Pre-heating thermoplastic blocks in the kettle saves time. But leaving material at 220°C for more than 2 hours without agitation causes thermal degradation of the hydrocarbon resin binder. The material will still extrude — but the cured line shows premature yellowing and micro-cracking within 6-8 months. A good machine includes a low-temperature holding mode (160-170°C) for standby periods between shifts.
FAQ
Q: Is thermoplastic road marking suitable for concrete highway surfaces?
Yes, but it requires a primer. On concrete, apply a two-component epoxy or polyurethane primer before thermoplastic application. Without primer, bond strength drops 50-70%. The primer fills surface porosity and provides the mechanical key thermoplastics need. Some machines integrate a primer spray system ahead of the extrusion shoe, eliminating a separate pass.
Q: How long does a thermoplastic marking machine last with proper maintenance?
A well-built machine with stainless steel tank construction, regular burner cleaning, and hydraulic system maintenance operates for 8-12 years in normal commercial use. Primary wear items: extrusion shoe (replace every 2-3 years or 500-800 km of line), agitator bearings, and burner nozzles. Machines with mild steel tanks — common in budget segments — typically develop corrosion leaks within 3-5 years, especially in humid or coastal environments.
Q: What is the typical material consumption for a highway project?
A 150mm-wide, 2mm-thick line consumes approximately 3.5-4.0 kg of thermoplastic per 100 linear meters. For a 10 km highway project with two edge lines and one centerline (30 km total), plan for roughly 1,200 kg of thermoplastic compound plus 350-400 kg of glass beads.
Q: Can one machine apply both thermoplastic and cold paint?
No. Thermoplastic machines are purpose-built with heated tanks, thermal oil jackets, and insulated delivery systems. Cold paint airless line stripers use high-pressure pumps and spray tips without heating. They are fundamentally different equipment categories. Some contractors run both types on the same project — thermoplastic for long-line highway markings, airless spray for short-line markings (stop bars, crosswalks, symbols) where thermoplastic's speed advantage is less significant.
Q: What is the typical payback period for upgrading to a professional thermoplastic machine?
Based on the M25 project data, material savings (6-12% less waste) and re-work reduction (from 8% to under 1%) typically recover the price difference within 3-5 medium-sized highway projects. If the upgraded machine enables bidding on contracts with tighter retroreflectivity warranties — which basic kettle operators often cannot meet — payback can be under 12 months from winning the first specification-grade contract.
Conclusion
Thermoplastic road marking has been used on European highways since the 1970s. What has changed is the specification environment. Highway authorities now write contracts with multi-year retroreflectivity warranties. Contractors relying on entry-level equipment with poor temperature control and manual bead application are finding re-work costs eroding already-thin margins.
A properly engineered thermoplastic road marking machine — with multi-zone heating, continuous agitation, pressure-fed bead dispensing, and synchronized ground speed control — does not just apply lines faster. It produces markings that stay visible, pass inspection, and meet warranty requirements three years after application. The difference shows in every metric: material waste, lane closure hours, bead retention rate, and total project cost per kilometer.
For the contractor bidding on highway work, the question is not whether to use thermoplastic. The question is whether your machine can meet the specification — and whether your competitor's machine is better.
