Product Details
Place of Origin: China
Brand Name: WAGE
Certification: EMS， OHSMS
Model Number: HG-VM
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 6200 to 9250usd
Packaging Details: box
Delivery Time: 1 to 3 weeks
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 10 set per week
Paint Type: |
Thermoplastic |
Marking Type: |
Noice Marking |
Paint Tank: |
120L |
Dispenser: |
12kg |
Bulge Thichness: |
3 -5 Mm Adjusted |
Line Width: |
15， 20， 30， 45cm |
Paint Type: |
Thermoplastic |
Marking Type: |
Noice Marking |
Paint Tank: |
120L |
Dispenser: |
12kg |
Bulge Thichness: |
3 -5 Mm Adjusted |
Line Width: |
15， 20， 30， 45cm |

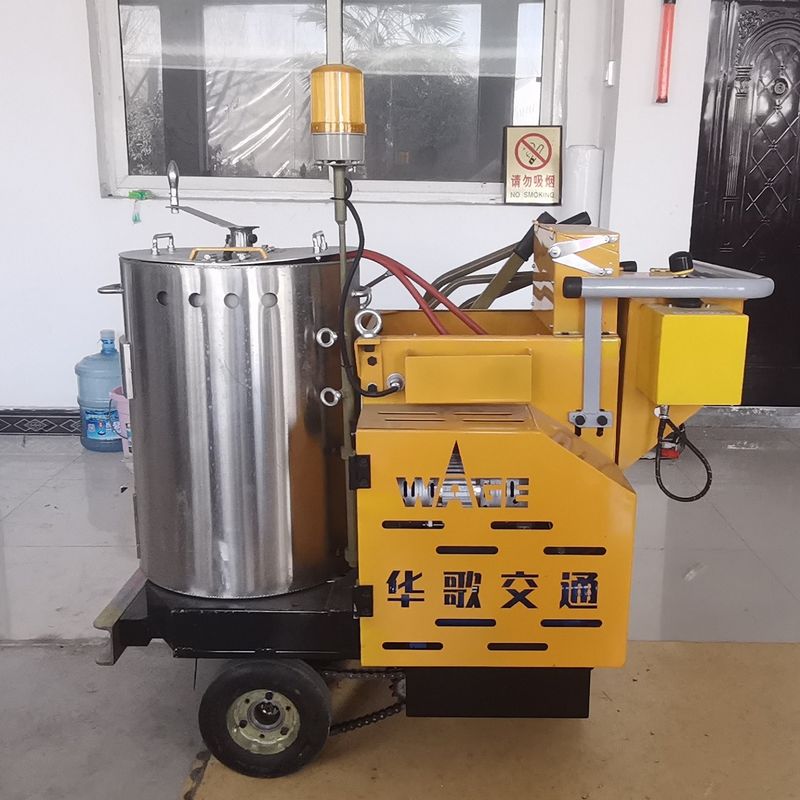

Elec driving Thermoplastic Vibration line Road Line Marking Machine for noise marking
Vibration marking is a kind of marking which is widely used in developed countries. Its shape is concave and convex. When a car passes by, it will have a "boom" sound. It has a good warning and reminding effect on the driver, so it is also called noise markin
WAGE Vibration road line marking machine has the following functional:
1. Adopt automatic oil pressure stepless speed change driving mode, automatic walking, to ensure uniform and efficient construction effect;
2. The scriber adopts stainless steel insulating material coatings barrel and inserting manual mixing device to ensure the best temperature and shape of the melt.
3. Unique marking hopper, which makes the shape, spacing and height of marking protrusion precise and accurate, makes the marking of hot melt oscillation complete at one time, and has strong wear resistance and impact resistance.
4. Synchronized clutch glass bead sprayer makes the glass beads more evenly scattered on the marking line.
5. It is equipped with speed regulating gear shifting device and rear wheel positioning system to ensure that the equipment is fixed and straight ahead.
Parameters:
| HG-EVM | |
| motor | Battery |
| moving speed | 12km/h |
| Grade ability | 15°MAX 15° |
| cylinder capacity | 120kg/tank |
| Glass Micro sphere cylinder capacity | 12kg/tank |
| Bulge thickness | 3-5mm(adjustment) |
| standard width | 150mm |
| size options | 150/200/300/450mm(marking scoops replacement) |
| size (L*W*H)mm | 1400*1100*1200mm |
| Weight | 210kg |
Main parts:
Construction spot:
