Product Details
Place of Origin: China
Brand Name: WAGE
Certification: EMS， OHSMS
Model Number: HG-15MM
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 1300- 1500 USD/ set
Packaging Details: Composite board
Delivery Time: 1 to 3 weeks
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 10 sets per week
Work Mode: |
Hand Pushing |
Version: |
Thermoplastic |
Paint Tank: |
120kg |
Dispenser: |
Auto Or Handle |
Work Mode: |
Hand Pushing |
Version: |
Thermoplastic |
Paint Tank: |
120kg |
Dispenser: |
Auto Or Handle |

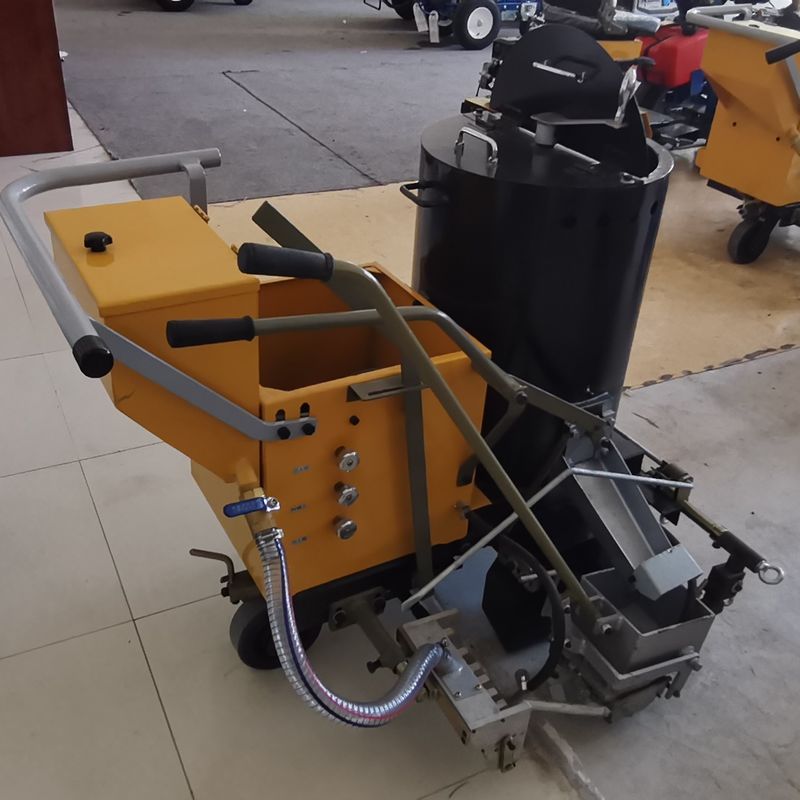

Hand Pushing Thermoplastic Road Making Machine 125L Tank
Hand pushing thermoplastic pavement line making machine
Thermoplastic Line marking machine is a kind of road construction machinery which is widely used in road, highway, parking lot, square and runway to draw different restrictions, guidelines and warnings on the flat ground. Thermoplastic road line marking machine is the key equipment for thermoplastic road line marking construction. It is used in conjunction with thermoplastic applicator to complete marking construction.
WAGE Thermoplastic road line marking machine has the following features:
1. Double-layer stainless steel thermal paint barrel and inserting manual mixing device, the melt temperature and shape can be ensured to reach the best state by heating with high-efficiency gas stove.
2. Synchronized clutch glass bead seeder, and improved seeder, make the glass beads more evenly scattered on the marking line;
3. The rear wheel alignment system enables the equipment to move in a straight line with high precision and ultra-thin material. The scraper structure scratch bucket and wear-resistant cemented carbide floor knife make the edge of the marking line more neat and beautiful.
4.The marking width is 100/150/200/300/400/450mm. The marking bucket of the corresponding width can be replaced according to the requirement, and the width can be customized according to the requirement.
Parameters
| HG-15MM | HG-15LM | HG-DM | |
| Marking mode | Thermoplastic scraping | Thermoplastic scraping | Thermoplastic scraping |
| Moving mode | Labor pushing | Labor pushing | Motor self-propelled moving |
| Battery capacity &voltage | / | / | 12x4=48AH / 48V |
| Moving speed | / | / | 1-8km/h |
| Paint cylinder capacity | 120kg | 120kg | 120kg |
|
Glass Micro sphere cylinder capacity |
25kg | 25kg | 25kg |
| Dispenser mode | Automatic dispenser | Manual dispenser | Automatic dispenser |
| Marking thickness | 1.2-3mm adjustment range | 1.2-3mm adjustment range | 1.2-3mm adjustment range |
| Scoop size options | 100/150/200/300/400/450mm(marking scoops replacement) | ||
| Size (L*W*H)mm | 1200*900*1100 | 1200*900*1100 | 1250*1000*950 |
| Weight | 128kg | 128kg | 150kg |
Main Parts
The Marking shoes made by alloy material, It can keep marking the beautiful lines when the road is not flat. Simple structure , easy to disassemble, change and maintain. We have different size shoes to be chose, 10cm, 15cm, 20cm, 30cm, 40cm, 45cm or customed.
Glass beads dispenser makes the dispensing synchronization with the marking line and ensures the quantity of the dispensing is controllable and adjustable.
Paint tank Increasing the tank volume to 125L, It can melt more paint onetime to save time and improve efficiency.
Tank filter to avoid happening of bad feeding such as missing, blocking, hard operation or easy damage;
Glass beads tank volume to 125L, fulfill the extra requirement on surface paints.
Construction working:
The company has a strong technical force, advanced production equipment and advanced marketing network, With the establishment of sound marketing network, multiple offices have been set up radiating Xinjiang Shandong,Sichuan,Jiangxi,and Hebei throughout China, the products covered more than 20 provinces and cities.Meanwhile, our products are booming on international market with the supply to Panama, Bolivia, Philippines, United States, Nicaragua, Spain and so on.
